Keri Systems, Inc. Shell design for a 1-Door Bluetooth Controller.
The kit includes a small enclosure over board, plus the larger enclosure with US Power Supply adn NXT-3R Reader.
I was provided with the circuit board blue print as a reference to design around. The kit needed to function with or without the power supply. An adaptable outer shell with the power supply was designed to fit over the main unit if needed.
Electronic blueprint provided by client

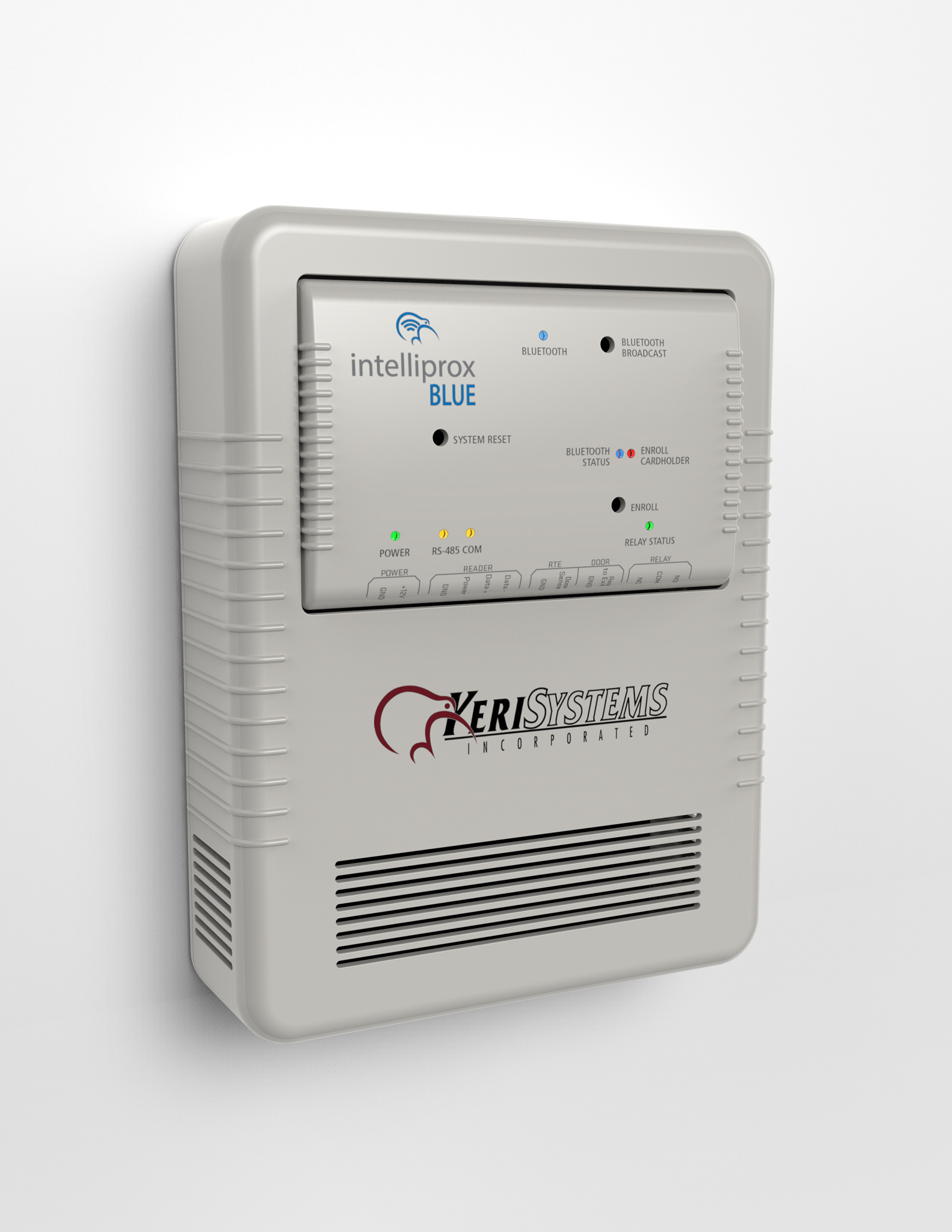

First version had lights and diagrams on the face and an ugly putty color

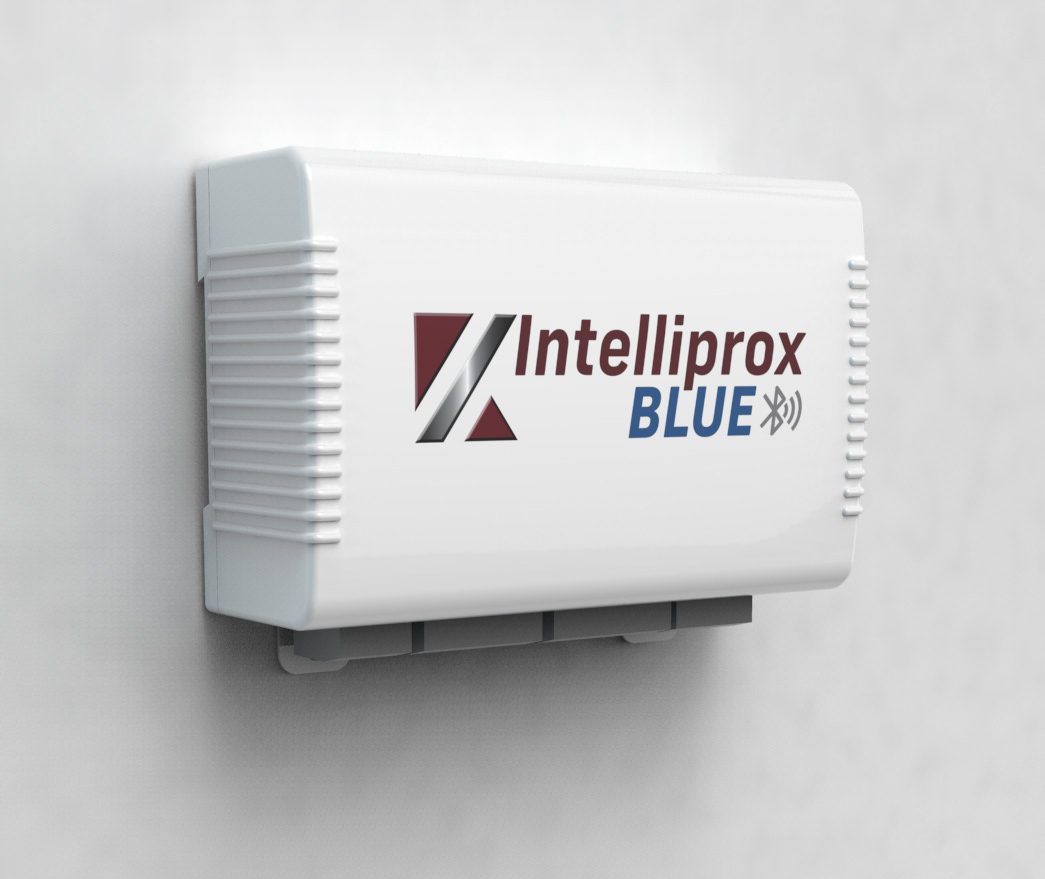

Final version with updated logo and a nice bright white
